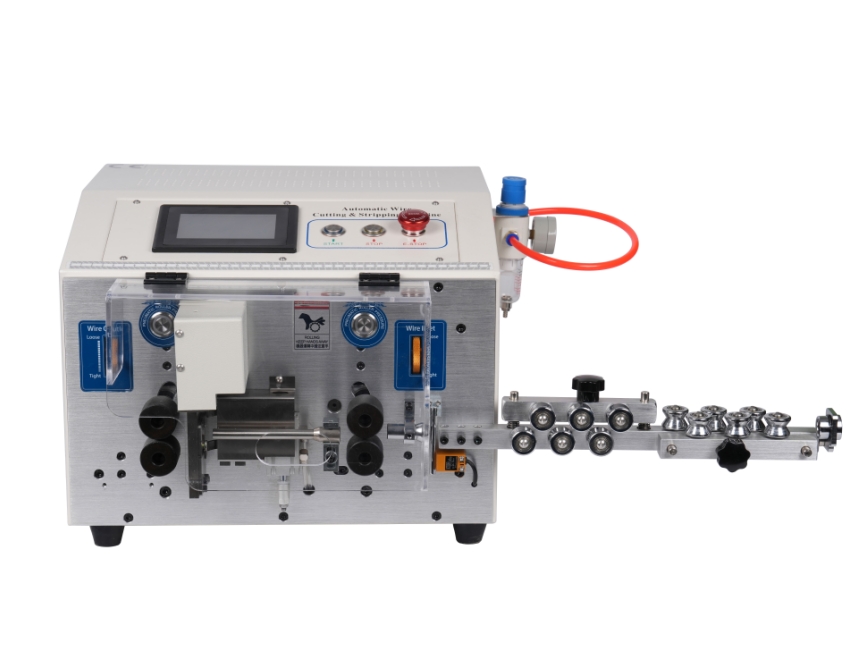

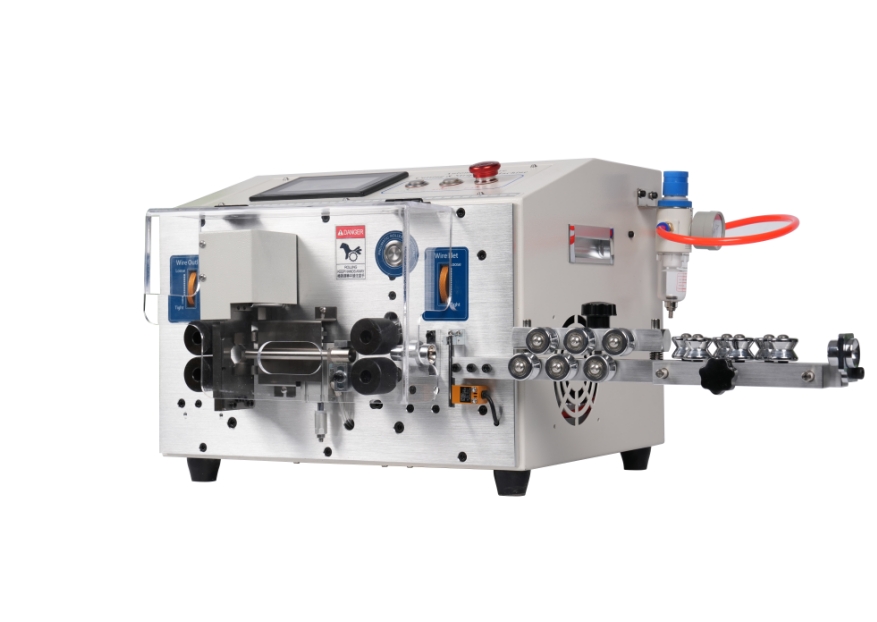

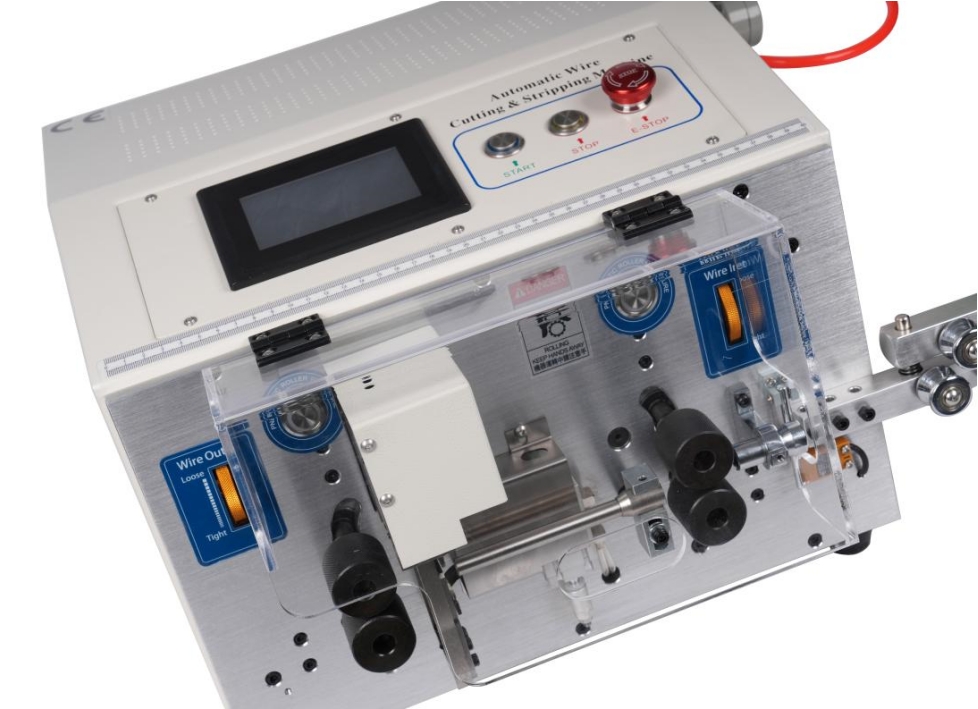

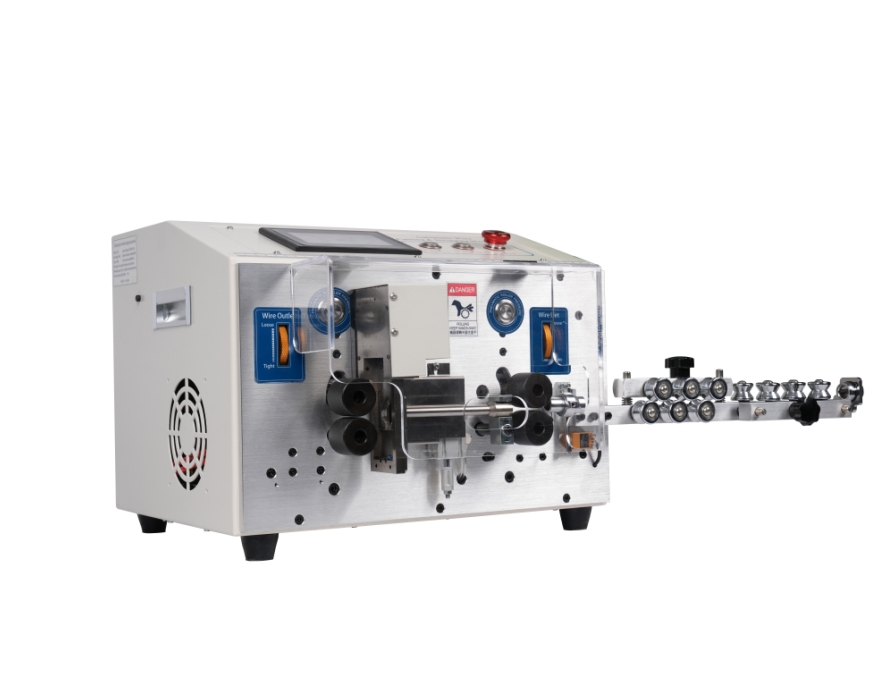

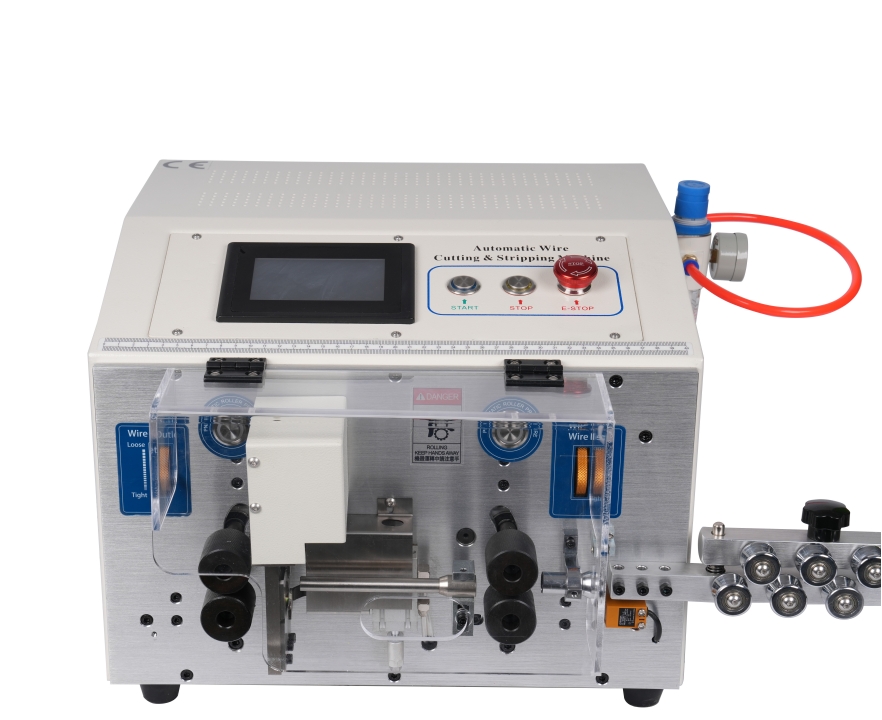

High speed round sheath inner and outer double layer peeling machine
Weight：38KG Power：450W
Electrical connection: 110V/220V 50HZ/60HZ
Operation interface: 4.3 inch Chinese and English switching touch screen display
Machine dimension: 450*420*335mm
Wire cross section: ￠2-8mm (Round sheath wire)
Number of wire cores that can be processed: 2 cores, 3 cores, 4 cores
Air pressure: 0.8Mpa Length accuracy： ± 0.2mm
Max conduit inside diameter:￠9mm
Wire length range：Max 9999mm
Outer wire strip length：Front end:1-120; rear end:1-50mm
Inner core strip length: Front end:0-30; rear end:0-30mm
Blade material: high-speed steel
Transport speed: (L=200MM piece/hour） 2500-3500 pieces
Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
