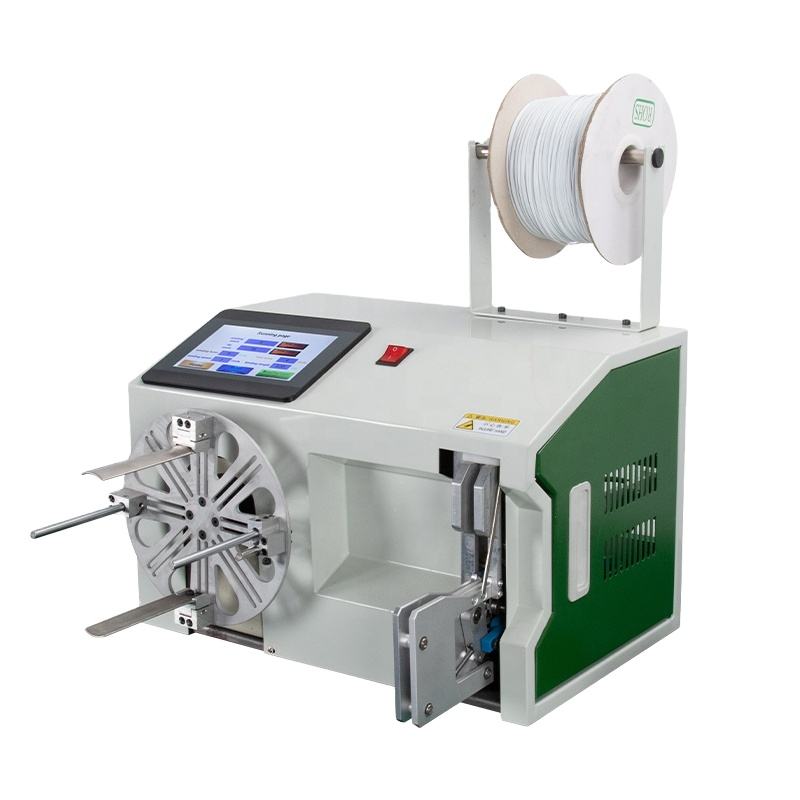

LA-90 Factory electrical customizable tape copper charging wire winding and binding machine for usb and other cable

Products Description

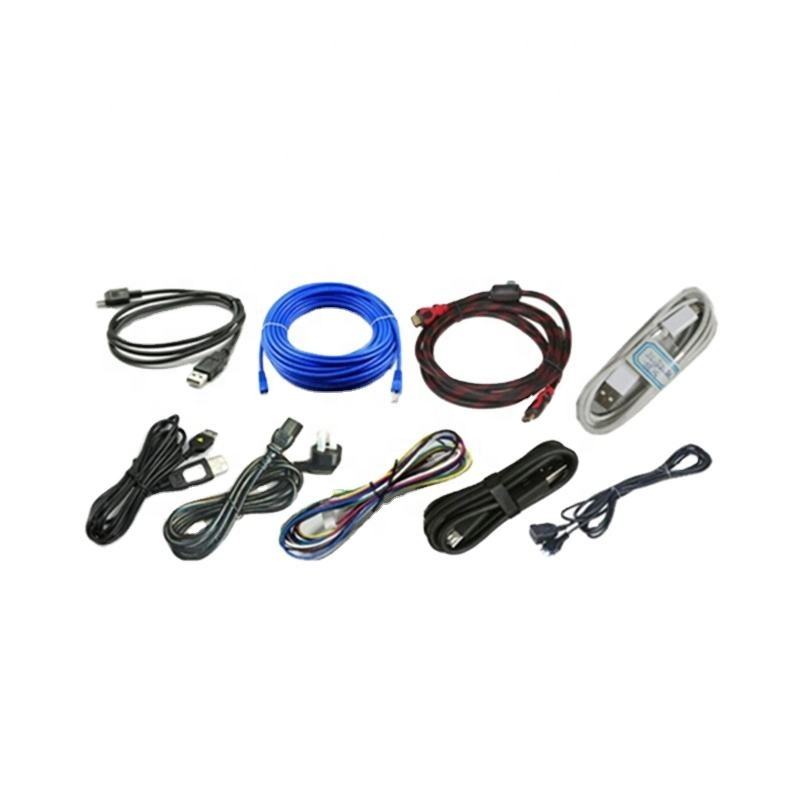

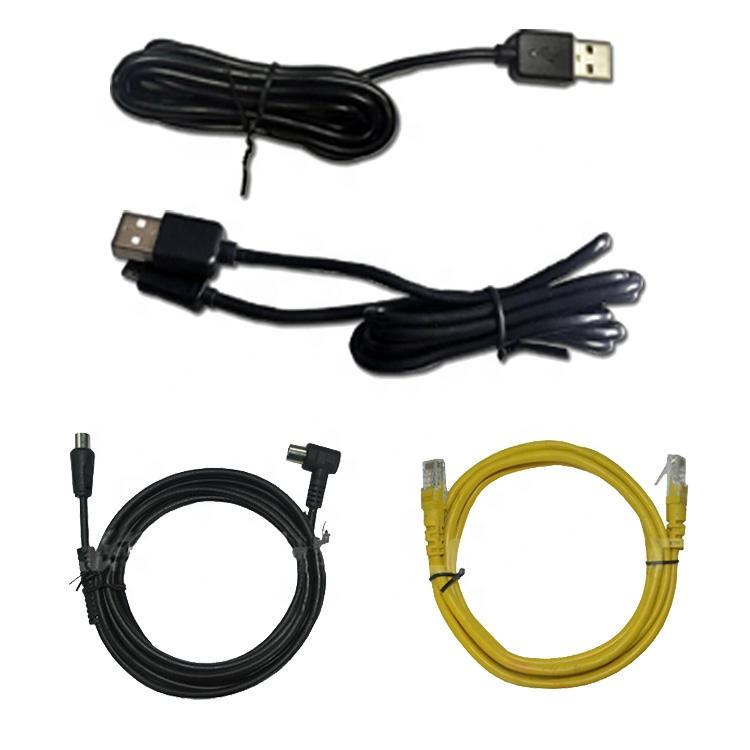

Features:LA-90 automatic wire cable binding twist tie machine cable wire coiling machine This machine is applicable to AC power line, DC power line, USB cable, video cable, HDMI HD line and other kinds of transmission lines using encapsulated core torsion sheaves, can also be used for other with plastic bags tied with iron core, such as racks and other industries.

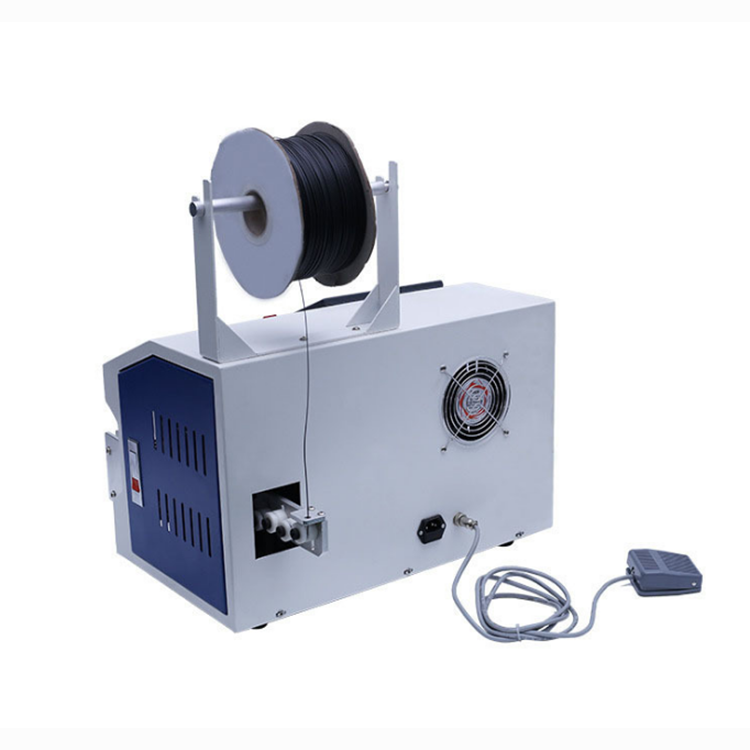

The employee only needs to fix the thread, the foot switch realizes the winding, and then takes it out and puts it into the tie line automatically. The whole process takes only 4-5 seconds. The machine can set the length of wire and the number of coils, so it can count the output. This machine adopts PLC program control and text display for parameter setting. It is simple and convenient to operate. It can reduce the fatigue strength and improve the work efficiency Save the belt and so on.
Mode
LA-90A
LA-90
LA-9045
Length of tie line
80-140mm
80-140mm
110-190mm
Applicable diameter
10-30mm
10-30mm
20-45mm
Band speed
1 second/each
1 second/each
1 second/each
Winding pitch
/
50-200mm
50-200mm
Winding speed
/
1-10 adjustable
1-10 adjustable
Power supply voltage
AC220V 50/60HZ
AC220V 50/60HZ
AC220V 50/60HZ
Size
550x550x400mm
700x550x400mm
700x550x400mm
Weight
30KG
45KG
45KG
