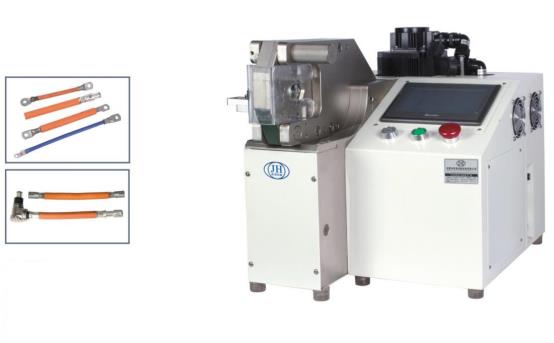

JH-240 Servo Hexagon Crimping Press (No Die Change Required)
JH-240 Servo Hexagon Crimping Press (No Die Change Required)
JH-240 Servo Hexagon Crimping Press (No Die Change Required)
Product Features:
1. This machine is primarily designed for crimping large-square tubular terminals.
2. Industrial-grade control chips combined with high-precision servo drives ensure stable machine operation.
3. PLC control system; no die change required, offering high accuracy.
4. Crimping of 6-120mm² closed-end tubular terminals requires no die replacement, with instant adjustment of cutter opening size.
5. Suitable for crimping non-standardized terminals or crimp-type terminals.
6. The crimping head can be fully opened, making it ideal for mid-span connections or crimping large-square terminals.
7. Allows position adjustment based on the actual cross-sectional area of the wire.
8. Compact structure, space-saving design, and low operational noise.
Machine Main Specification：
Model | JH-240 Servo Hexagon Crimping Press (No Die Change Required) |
Wire Diameter Range | 10 - 120 mm² |
Pressure | 200 kN |
Crimping Appearance | Hexagon |
Crimping Width | 12.5 mm (Customizable width) |
Maximum Opening | 32 mm |
Machine Dimensions | 500 × 450 × 480 mm |
Machine Power | 2300 W |
Power Supply | AC 220V 50/60 Hz |
Weight | 120 kg |
Machine Function | Simultaneously crimps all six sides of pre-wired terminals into a hexagon shape. No die change required - directly input crimping data for operation. |
