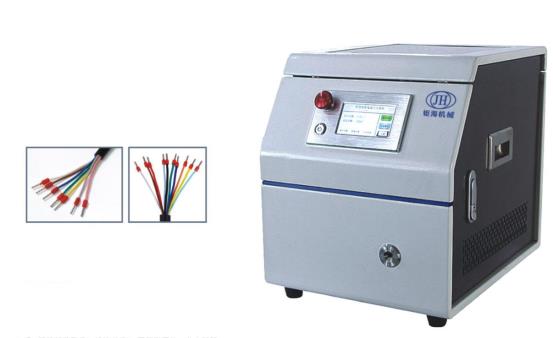

JH-0540 gt insulated tubular terminal crimping machine
JH-0540 gt insulated tubular terminal crimping machine
JH-0540 gt insulated tubular terminal crimping machine
Product Features:
1. Fully enclosed machine design ensures safe and reliable operation.
2. Touchscreen operation with motorized adjustment of stripping depth and length; all set parameters can be saved.
3. Automatic terminal feeding with material shortage detection, making terminal crimping safer and more efficient.
4. Agile automatic triggering for quick and convenient operation; semi-automatic mode with manual wire loading.
5. The equipment features automatic sensing and performs rotary stripping, wire twisting, terminal insertion, and crimping. Supports various crimp shapes including quadrilateral (square), hexagonal (round), and quadrilateral single-side crimp (square), etc.
Machine Main Specification：
Model | JH-0540 gt insulated tubular terminal crimping machine |
Crimping Range | 0.35mm²-4mm² (Maximum crimping length: 12mm) |
Capacity | 1,000-1,300 PCS/Hour |
Detection System | Terminal supply detection, Material shortage detection |
Drive System | Motor/Imported ball screw |
Control System | Touch screen & Programmable controller, MINGDA driver |
Wire Clamping | Motor driven, Program-controlled clamping force |
Crimping Mechanism | Motor driven, Program-controlled crimping force |
Crimp Shape | Quadrilateral (square), Other shapes customizable |
Power Supply | AC 220V 50/60Hz 400W |
Air Supply | 0.6-0.8 MPa (Please use clean, dry air source) |
Dimensions (L×W×H) | 450 × 350 × 425 mm (Front width) |
Weight | Approx. 68 kg |
