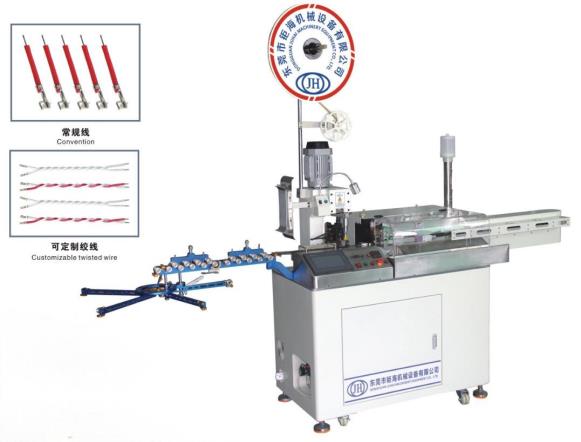

JH-5505 Fully Automatic Single-Head 5-Wire Crimping - Tinning Machine
JH-5505 Fully Automatic Single-Head 5-Wire Crimping & Tinning Machine
JH-5505 Fully Automatic Single-Head 5-Wire Crimping & Tinning Machine
Product Highlight：
1.Adopting servo+stepper motor,precise,efficient,and stable;
2.Using touch screen touch adjustment,including one click completion of wire length,opening length,half peel length,twist wire tension,twist wire length,tin dipping length,etc;
3.Using computerized automatic detection,low air pressure,motor abnormalities, belt abnormalities, etc. can automatically stop the machine in case of abnormalities,and the
detection will display the cause of the fault,which is convenient and fast;
4.The adjustment technology is simple,the adjustment time is short,and it can greatly reduce the machine adjustment time;
5.Adjust the terminal position on the touch screen for more precise and stable terminal connection.
Machine Main Specification：
JH-5505 Fully Automatic Single-Head 5-Wire Crimping & Tinning Machine | |
Power Supply | AC 220V 50/60Hz Single-phase |
Standard Functions | Wire cutting, Single-end crimping, Double-end stripping, Single-end half-stripping, Single-end twisting, Single-end tinning |
Production Rate | 6,000-8,000 pieces/hour (depending on wire type) |
Wire Range | AWG #32 - #20 |
Cutting Length | 15-1000 mm |
Crimping Force | 2.0T |
Cutting Accuracy | ±0.2mm + 0.2% × L (L = Cutting Length) |
Stripping Length | 0.5-10 mm |
Twisting Length | 0.5-10 mm |
Tinning Length | 0.5-10 mm |
Air Pressure | 0.6-0.8 MPa (Requires clean, dry air source) |
Machine Dimensions (W×L×H) | 1680 × 680 × 1680 mm (excluding protrusions) |
Weight | 380 kg |
