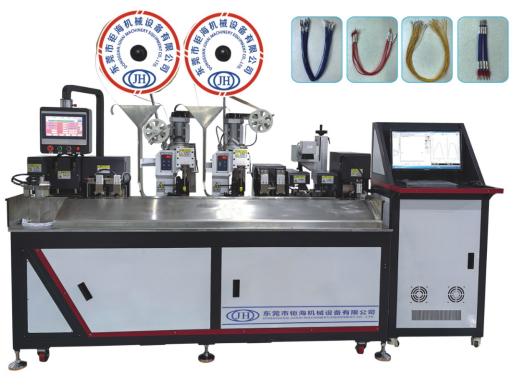

JH-7703SJ Fully Automatic Dual-Crimping - Dual-Tubing with Laser Marking Terminal Machine
JH-7703SJ Fully Automatic Double Tag Double Thread Number Tube Terminal Machine (translation structure)
JH-7703USJ Fully Automatic Double Tag Double Thread Number Tube Terminal Machine (U-shaped Structure)
Machine Main Specification：
Model | JH-7703SJ Fully Automatic Dual-Crimping & Dual-Tubing with Laser Marking Terminal Machine (Linear Structure) |
Power Supply | Single-phase AC 220V 50/60Hz 16A |
Standard Functions | Single/Double-end stripping, Single/Double-end crimping, Single/Double-end tubing with laser marking & automatic positioning & baking, Optional tinning at B-end |
Production Capacity | 1,000-2,300 pieces/hour (depending on wire & terminal type) |
Wire Range | AWG #26 - #10 |
Cutting Length | 70-9999 mm (setting increment: 0.1mm) |
Stripping Length | 1-15 mm |
Tubing Specifications | Length: 12-30 mm; Diameter: Ø2.0-Ø8.0 mm |
Marking Method | Laser |
Crimping Stroke | 30 mm |
Applicable Dies | Universal OTP dies |
Detection Systems | Air pressure detection, Wire presence detection, Terminal presence detection, Pressure monitoring (optional), Vision inspection (optional) |
Air Supply | 0.5-0.8 MPa (170 N/min) |
Machine Dimensions (L×W×H) | 2000 × 850 × 1800 mm (excluding protrusions) |
Main Component Brands | HIWIN/TBI/Fulei ball screws (Taiwan), Airtac cylinders & solenoids (Taiwan), Leadshine/Inovance servo motors, Fulei linear guides, Japanese imported bearings |
JH-7703USJ Fully Automatic Dual-Crimping & Dual-Tubing with Laser Marking Terminal Machine (U-Shaped Structure) | |
Power Supply | Single-phase AC 220V 50/60Hz 16A |
Standard Functions | Single/Double-end stripping, Single/Double-end crimping, Single/Double-end tubing with laser marking & automatic positioning & baking, Optional tinning at B-end |
Production Capacity | 1,700-2,200 pieces/hour (depending on wire & terminal type) |
Wire Range | AWG #26 - #10 |
Cutting Length | 300-9999 mm (setting increment: 0.1mm) |
Stripping Length | 1-15 mm |
Tubing Specifications | Length: 12-30 mm; Diameter: Ø2.0-Ø8.0 mm |
Marking Method | Laser |
Crimping Stroke | 30 mm |
Applicable Dies | Universal OTP dies |
Detection Systems | Air pressure detection, Wire presence detection, Terminal presence detection, Pressure monitoring (optional), Vision inspection (optional) |
Air Supply | 0.5-0.8 MPa (170 Nl/min) |
Machine Dimensions (L×W×H) | 2300 × 850 × 1800 mm (excluding protrusions) |
Main Component Brands | HIWIN/TBI/Fulei ball screws (Taiwan), Airtac cylinders & solenoids (Taiwan), Leadshine/Inovance servo motors, Fulei linear guides, Japanese imported bearings |
