Mold die for crimping machine wholesale terminal applicator crimping dies for cable wire terminal crimping mould vertical horizontal mold type

Products Description
Features: Mold die for crimping machine wholesale terminal applicator loose continuous
Various terminal machines and copper belt machines can be used to press the mold according to customer requirements. Stable mold performance, high precision and affordable price.
Function
Mold for crimping machine
Mold type
OTP horizontal
Weight
5KG
Stroke
30mm

Note:

Each set of molds is equipped with a set of blades (according to customer terminal products). Can be combined with /scattered, customized die according to different needs.

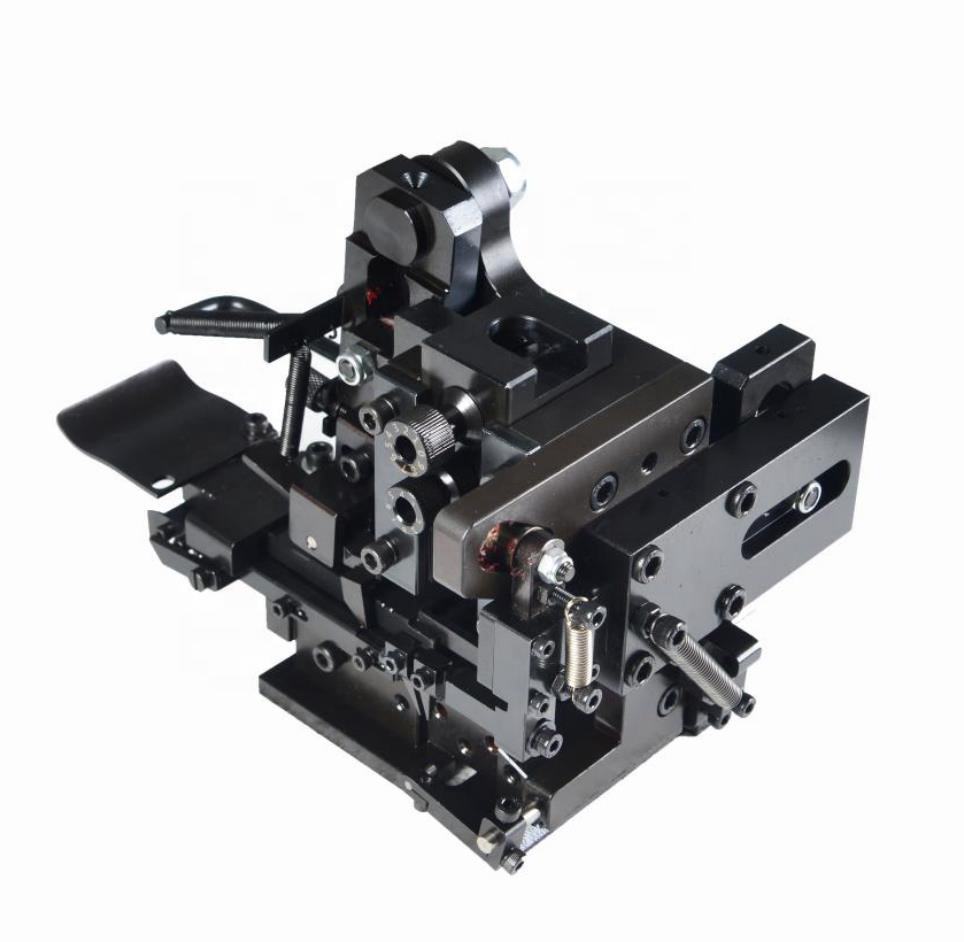

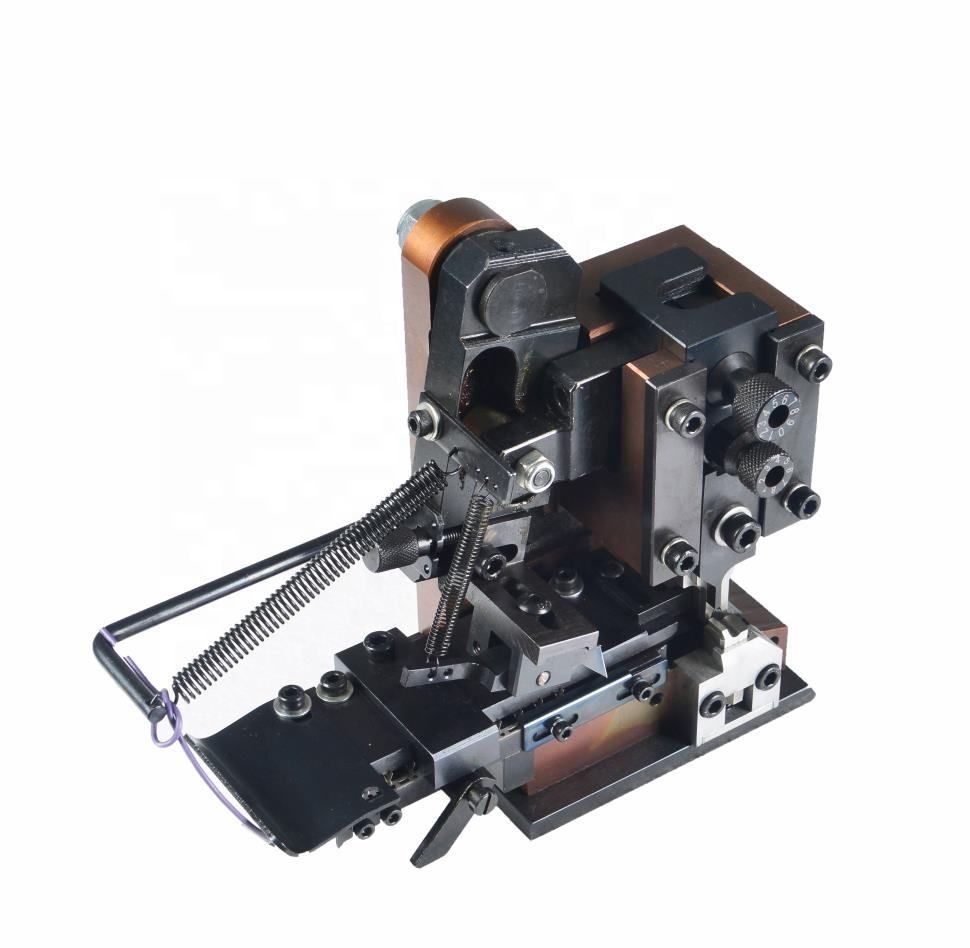

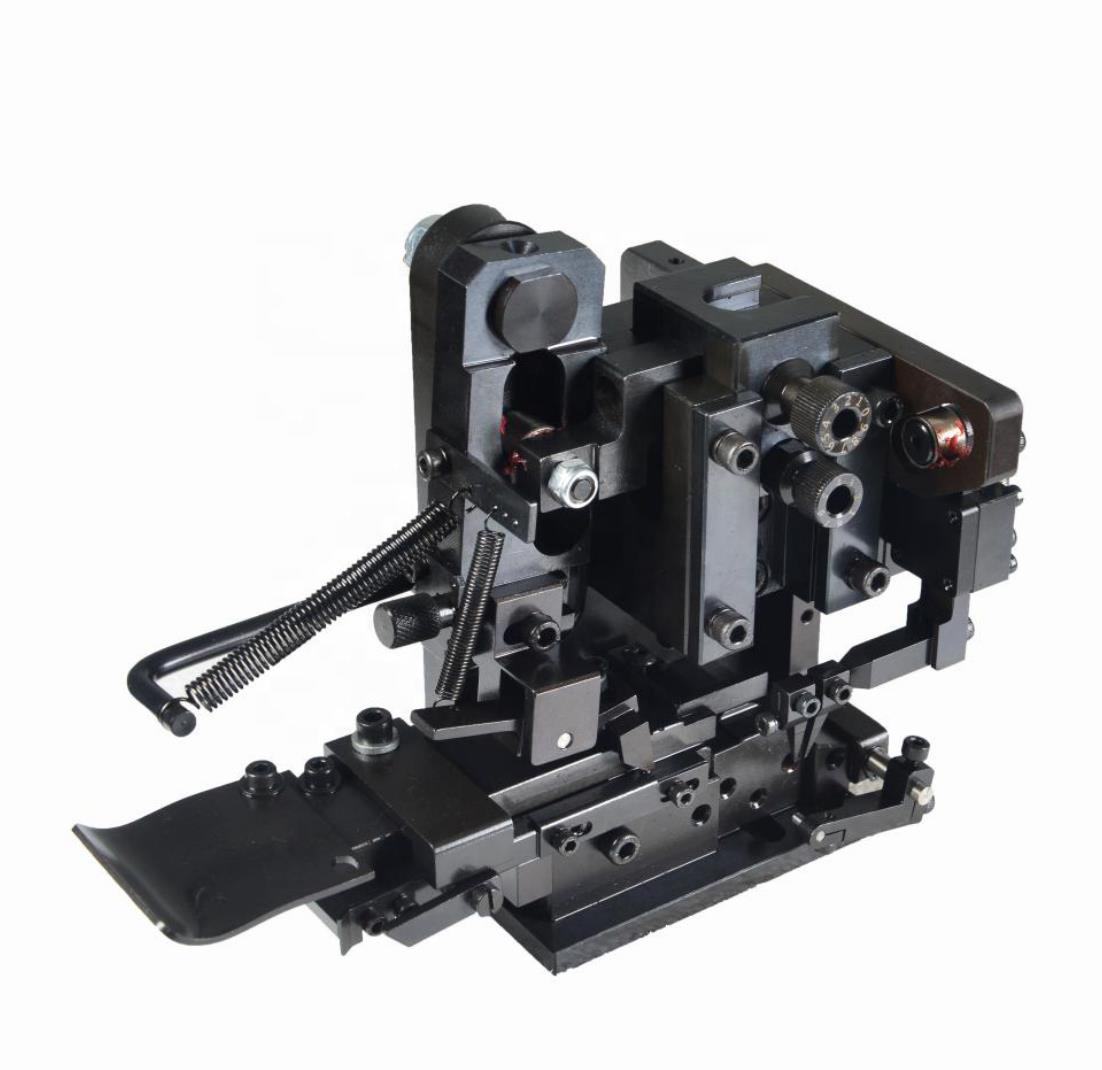

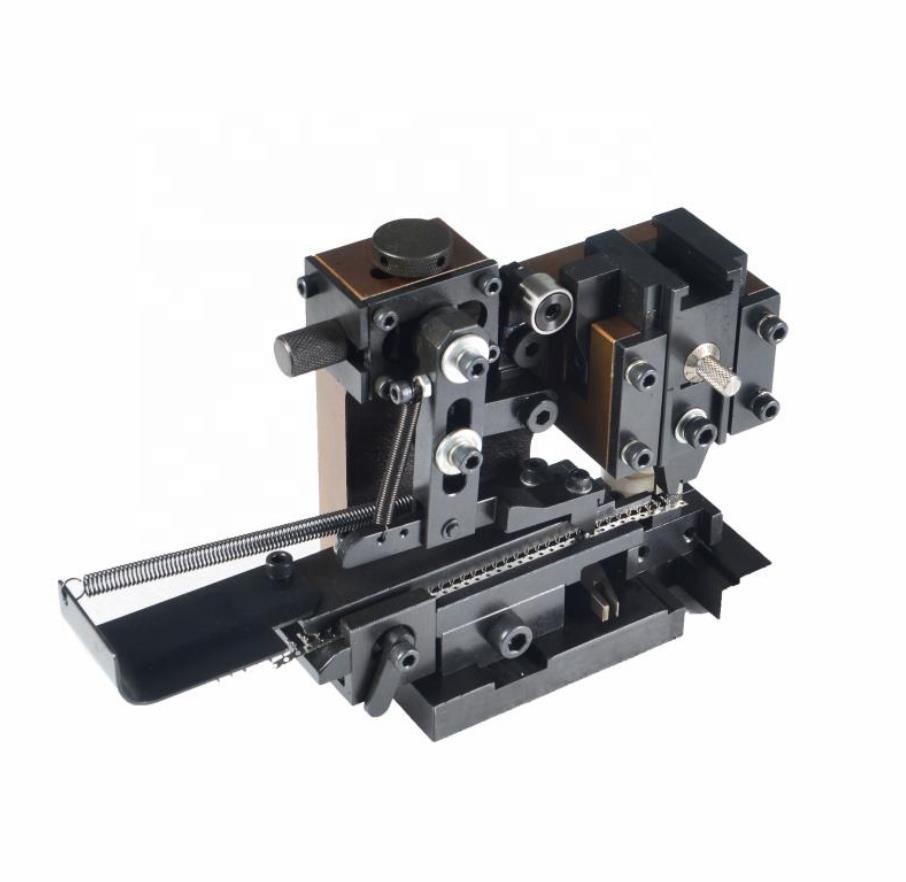

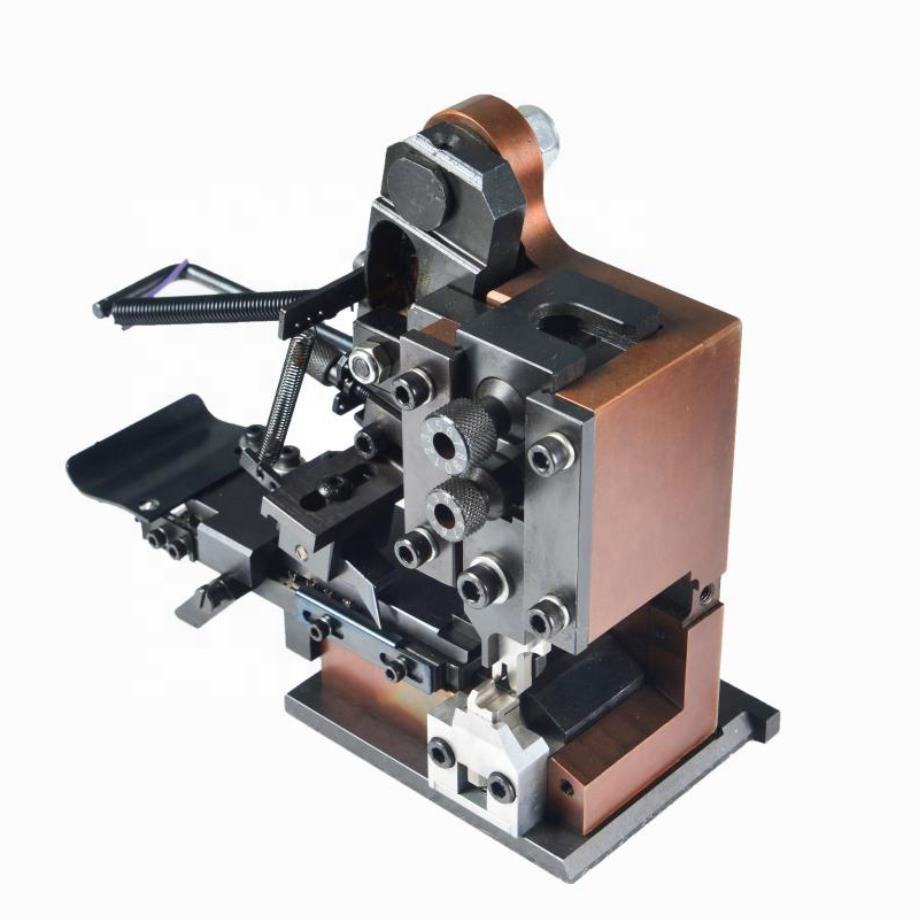

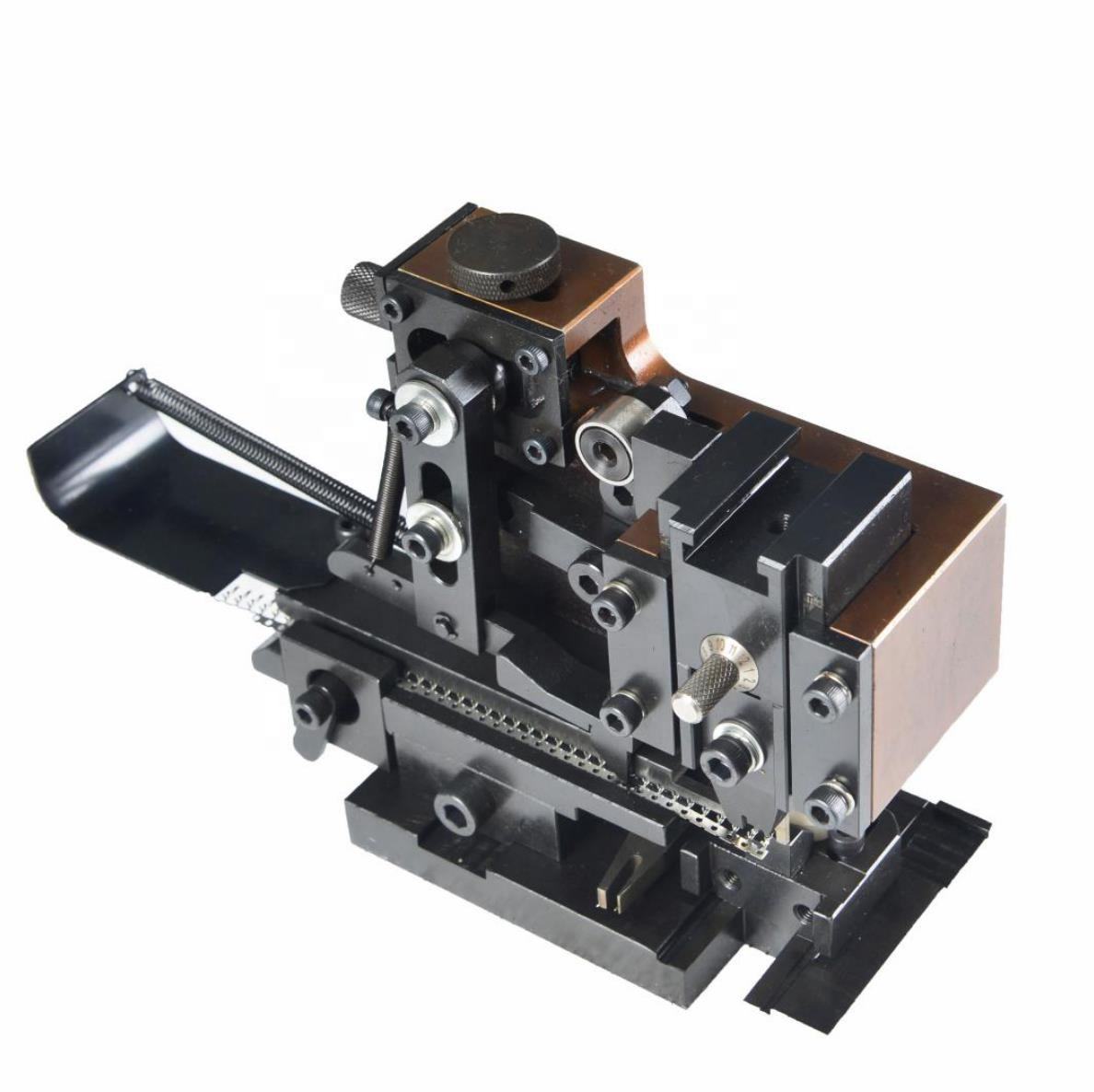

OTP horizontal mold:

The most commonly used mold in the wire harness processing industry has the advantage of easy feeding and debugging. And the number of blades is small, easy to install. Equipped with two scale knobs, you can easily adjust the blade.

OTP straight mold:

The blade of a straight mold is usually composed of more than six blades, four of which are conventional blades for riveting the core wire and the outer cover, and the other two are used to cut the tape.

2000 type mold:

Type 2000 molds are widely used, and can be equipped with horizontal, direct, single and flag terminals. Suitable for
110/187/205/250 flag terminals, true flag terminals, false flag terminals and other products.

OTP single grain mold:

The simplest kind of mold is especially used for crimping single terminal. Commonly used for single-grain pre-insulated terminals,ground terminals, spring plug terminals, etc. The installation and commissioning are extremely simple, especially suitable for novice users.
