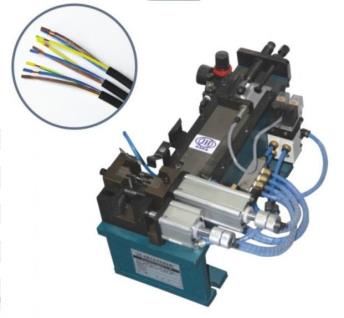

JH Double-layer Sheathed Wire Stripping Machine
JH Double-layer Sheathed Wire Stripping Machine
Product Highlights:
This machine enables single-operation stripping of both outer sheath and inner cores for multi-core data cables and power cords. Equipped with circular blades for the outer sheath and standard flat blades (with optional cutter) for core wires, it features easy blade replacement and adjustable stripping length. Compared to traditional two-step stripping processes, it significantly reduces labor costs while delivering superior results. Beginners can master operations with minimal training, making the workflow exceptionally user-friendly.
Machine Main Specification：
Model | JH-310S | JH-315S |
|---|---|---|
Power Supply | AC 220V 50/60Hz | AC 220V 50/60Hz |
Applicable Wire Diameter | 3-7 mm | 3-10 mm |
Outer Sheath Stripping Length | 15-80 mm | 15-130 mm |
Core Wire Stripping Length | 0-15 mm | 0-15 mm |
Air Pressure | 4-7 kg/cm² | 4-7 kg/cm² |
Dimensions (L×W×H) | 500 × 360 × 200 mm | 650 × 360 × 200 mm |
Weight | 28 kg | 35 kg |
Purpose | Pneumatic fixed-length stripping of outer sheath and core wire completed simultaneously | Pneumatic fixed-length stripping of outer sheath and core wire completed simultaneously |
