JH Heat Shrink Oven
JH Heat Shrink Oven

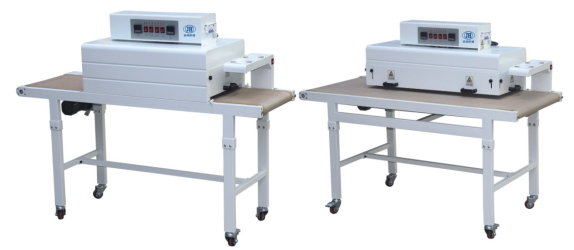

JH-848H Heat Shrink Oven (Enclosed Type)
JH-1040PH Heat Shrink Oven (Open Type)
Product Highlights:

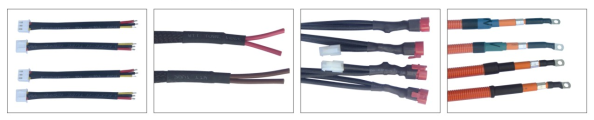

This series includes enclosed and semi-open heat shrink ovens with welded frames. They are suitable for heat shrinking or baking relatively small products such as wire harness heat shrink tubes, heat shrink film packaging, circuit boards, inductor coils, copper busbars, and hardware accessories.
Machine Main Specification：
JH-848H Heat Shrink Oven (Enclosed Type) | JH-1040PH Heat Shrink Oven (Open Type) | |
|---|---|---|
Mechanical Dimensions (H×W×D) | 160 × 48 × 120 cm | 160 × 70 × 120 cm |
Import Length | 50 cm | 30 cm |
Export Length | 30 cm | 25 cm |
Baking Length | 80 cm | 100 cm |
Power Supply | AC 380V (220V Optional) 50Hz | AC 220V 50Hz |
Conveying Speed | 0–6 m/min | 0–6 m/min |
Mechanical Power | 6 kW (3.6 kW Optional) | 7.2 kW (4.5 kW Optional) |
Conveying Capacity | 20 kg | 20 kg |
Material of Conveyor Belt | High-Temperature Resistant PTFE Mesh Belt | - |
Heating Temperature | 0–260°C | 0–260°C |
Heating Method | Two Sets of Temperature Control (Double-Sided Heating) | - |
Mechanical Weight | 90 kg | 100 kg |
