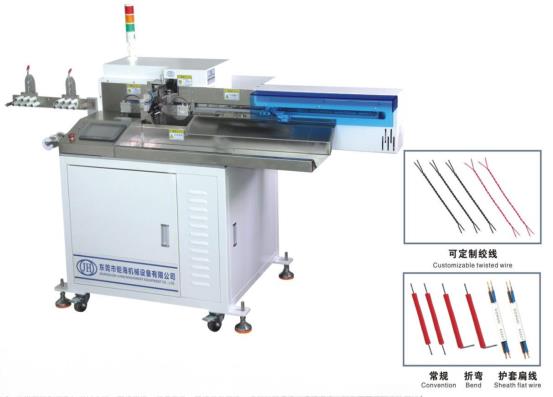

JH-5508 Fully Automatic Dual-Head Tinning Machine
JH-5508 Fully Automatic Dual-Head Tinning Machine
JH-5508 Fully Automatic Dual-Head Tinning Machine
Product Highlight：
1.This device realizes automatic wire splitting,cutting and peeling,end piercing and shell piercing at both ends,and can switch to end tinning,winding and wire tying at the back end.It integrates continuous automated processing with quality monitoring;
2.Suitable for processing various types of wires such as ribbon cables and electronic cables,with minimal replacement of accessories for different specifications of rubber shells.Easy to change and operate;
3.Global renowned brands are used for servo control,pneumatic components,guide rails,etc.to ensure stable overall performance of the equipment;
4.Optional:Terminal pressure management device,CCD visual inspection(core wire detection,termination detection,shell penetration detection),automatic differentiation of good and defective products,worry free operation,quality assurance;
5.Adopting a touch screen human-machine interface,parameter adjustment is convenient,and operation is simple and flexible;
6.Having strong research and development capabilities,capable of intelligently upgrading and expanding equipment functions.
Machine Main Specification：
JH-5508 Fully Automatic Dual-Head Tinning Machine | |
Power Supply | AC 220V 50/60Hz Single-phase |
Standard Functions | Wire cutting, Single-end stripping, Double-end stripping, Double-end half-stripping, Double-end twisting, Single-end tinning, Double-end tinning |
Production Rate | Number of input wires × 950–1100 action cycles/hour (wire length ≤ 200mm) |
Wire Range | AWG #32 – #14 |
Cutting Length | 15–800 mm (Customizable for special requirements) |
Cutting Accuracy | ±0.2mm + 0.2% × L (L = Cutting Length) |
Stripping Length | 0–10 mm (Both ends) |
Twisting Length | 3.5–10 mm |
Tinning Length | 1–10 mm |
Air Pressure | 0.6–0.8 MPa (Requires clean, dry air source) |
Machine Dimensions (L×W×H) | 2200 × 850 × 1400 mm |
Weight | Approx. 260 kg |
