JH-6800 Multi-Core Wire Stripping & Crimping Machine
JH-6800 Multi-Core Wire Stripping & Crimping Machine
Product Features:
1.Integrated stripping and crimping completed in one cycle for maximum efficiency.Features frequency conversion control for soft start/stop operation,eliminating mechanical wear.
2.Modular cartridge die and independent stripping unit allow quick die changes and adjustable strip depth for enhanced production flexibility.
3.Supports independent stripping and terminal crimping operations with automatic/manual modes.All motion timings are adjustable based on wire and terminal specifications.
4.Full PLC program control with 7-inch HMI touchscreen interface.Pneumatic components and valves ensure long-term durability.
5.Dedicated wire scrap recovery system maintains clean working environment.
Machine Main Specification：
JH-6800 Multi-Core Wire Stripping & Crimping Machine | |
Power Supply | AC 220V 50-60Hz |
Rated Power | 0.75 kW |
Dimensions (L×W×H) | 690 × 450 × 1250 mm (excluding protrusions) |
Weight | 118 kg |

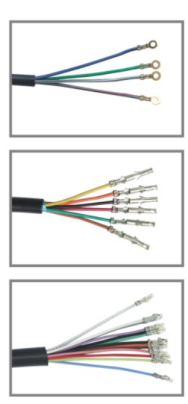

Processing Scope | 0-20 core sheathed wires, ribbon cables, electronic wires, parallel wires (Not suitable for twisted pairs or mixed size wires) |
Sheath Stripping Capability | Minimum 15mm (for 3-4 core wires) |
Crimping Stroke | 30 mm |
Crimping Force | 2.0T |
Capacity | Approx. 3,600 pieces/hour (depending on wire type) |
Auxiliary Functions | Equipped with paper collection and waste cutting devices |
