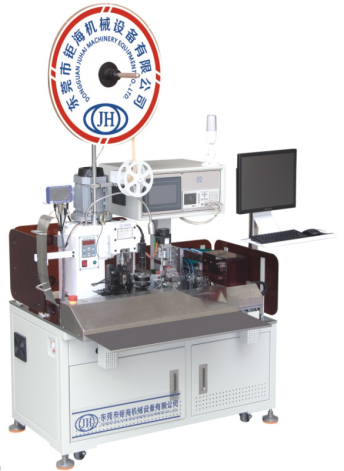

JH-6800CK Automatic end punching and shell inserting machine
JH-6800CK Automatic end punching and shell inserting machine
JH-6800CK Automatic end punching and shell inserting machine
Product Highlight：
1. This equipment adopts manual wire loading and achieves continuous automated processing, including automatic cutting, stripping, crimping, terminal appearance vision inspection, housing insertion, and electrical performance testing.
2. Servo systems, pneumatic components, ball screws, and linear guides from internationally renowned brands are used to ensure stable overall machine performance.
3. Optional terminal pressure monitoring and CCD vision inspection systems are available. The machine alarms and stops upon operational abnormalities, ensuring worry-free operation and guaranteed quality.
4. The machine utilizes a PLC programmable control system and a touch-screen HMI, allowing for easy parameter adjustment and simple, flexible operation.
Machine Main Specification：
Model | JH-6800CK Automatic end punching and shell inserting machine |

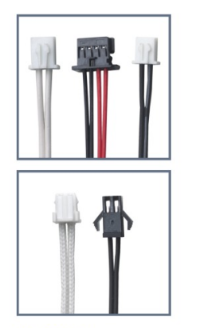

applicable wire | Electronic wires, Parallel wires, Ribbon cables, Flat sheathed cables; AWG#28–AWG#18; OD: 0.8–2.5mm |
Functions | Cutting, Stripping, Crimping, Inserting, Electrical Testing, Appearance Inspection |
Cutting Length | 0.1–4mm ±0.1mm |
Stripping Length | 0.1–4mm |
Terminal Size Range | ≤20mm after crimping |
Housing Size Range | Max. Dimensions: L=34mm, W=12mm, H=12mm |
Detection Functions | Core wire CCD inspection, Terminal pressure monitoring, Crimping appearance CCD inspection, Electrical performance testing |
Crimping Force | 2.0T |
Capacity | 600–900 sets/hour (depending on manual wire loading speed) |
Power Supply | AC 220V 50/60Hz |
Air Pressure | 0.5–0.7 MPa |
Dimensions (L×W×H) | 2100 × 1000 × 2200 mm |
Weight | Approx. 450 kg |
